MB 545 VR - 17", Petrol lawn mower with rear roller and vario drive
arrow
Selection Petrol lawn mowers for small to medium sized lawns

MB 545 VR

17", Petrol lawn mower with rear roller and vario drive

General

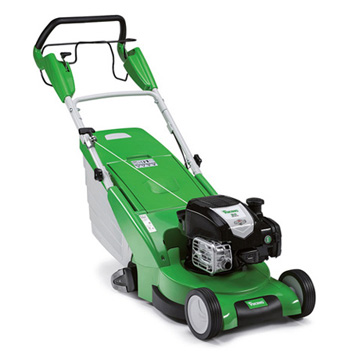

MB 545.1 VR
Enlarge

Achieve the classic British stripe effect to your lawn with the VIKING MB 545 VR 17” rear roller model. Easy handling and the sturdy lightweight polymer chassis guarantee excellent results. ReadyStart engine: petrol engine starts with one easy pull, no priming required due to an automatic choke. Easy 6-setting central cutting height adjustment. 60 litre volume catcher box with level indicator. 3-setting height adjustable handle. Suitable for gardens with lawns up to 1200m².

Versions

Price

* Manufacturer's recommended retail price updated as of February 2019. The manufacturer's recommended retail prices are subject to change without notice.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Technical data

MB 545.1 VR

Technical data

Lawn size m² up to 1.200
Cutting width cm 43
Cutting height mm 20-75
Nominal output at working speed kW/hp 2.4 kW/3.3 PS
Working speed rpm 2.800
Grass catcher bag volume l 60
Weight kg 30
Start / Stop HS Handle start/MS Motor stop
Drive Vario
Guaranteed sound power level dB(A) 95
Measured workplace LpA dB(A) 82
Uncertainty factor dB(A) 2
Vibration value (AHW) m/s2 4.20 / 2.10
Dimensions (L/W/H) cm 147 x 48 x 102

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Features

MB 545.1 VR

Standard features

  • Vario-drive Zoom
    Vario-drive

    Vario-drive makes mowing the lawn easier especially where you have larger areas or gentle gradients. Adjust the lever and the mower starts moving at the required speed.

  • Zoom
    Self-propelled

    Depending on the model, VIKING self propelled lawn mowers are equipped with either single, 3 speed, or vario drive. Just push the lever and the mower sets itself in motion. Ideal for large areas of grass.

  • Zoom
    Central cutting height adjustment

    The cutting height can be adjusted to one of 7 levels via a lever. The desired cutting height can be precisely adjusted with the aid of a sprung-loaded mechanism via the handle on the left-hand side of the housing.

  • Polymer deck Zoom
    Polymer deck

    The lawn mower housing is made of high impact, heat and UV resistant polymer.

  • Zoom
    Height-adjustable handlebar

    The handlebar height can be adjusted simply and quickly and fixed in 3 different positions according to the user's height.

  • Foldable handlebar Zoom
    Foldable handlebar

    Thanks to the foldable handlebar, VIKING lawn mowers are easy to transport and convenient to store.

  • Innovative grass catcher box Zoom
    Innovative grass catcher box

    The catcher box can be 100% filled, thanks to the optimised design shape and air guide. The air vents face downwards so that grass and dust do not escape upwards. The two-part catcher box design ensures easy opening and emptying.

  • Integral grass level indicator Zoom
    Integral grass level indicator

    The integral level indicator shows when the catcher box is full and ready for emptying

  • Rear Roller Zoom
    Rear Roller

    With the aid of a full width split roller on the rear axle, the grass is rolled in the direction of travel. This results in the typical striped lawn pattern.

  • High-lift blades Zoom
    High-lift blades

    The high-lift blades combined with the aerodynamic housing produce a strong air current that lifts the grass before cutting and blows the cut grass into the grass catcher box.

  • Easy-running wheels Zoom
    Easy-running wheels

    Large wheels with high quality ball bearings for easy running. The tread pattern provides better traction and allows for easy cleaning.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
